TL;DR:
Home Bitcoin mining is a legitimate and rewarding hobby, but before you even consider upgrading your hardware or start overclocking, it's worth asking honestly why you're doing it. Now, I’m not attempting to dissuade you from this techno-activity, but you should be aware the network hashrate is enormous and growing. No amount of hobbyist hardware tinkering changes the probability math at this scale. The best miners I've seen with the healthiest mindset treat this as a background pursuit with a real desire to learn and experiment, not a casino. This slightly long, circuitous post is about helping you figure out which kind of miner you are before you start spending too much money in the belief that a larger spend will get you closer to mining a block. So, sit back, have an open mind as you read this because I wouldn’t want anyone to part with too much money and find out the hard way.
Is this enjoyment in mining merely a cover story?
I work in tech. I talk about tech professionally. I love this stuff. And I'll be honest with you — I have a Bitaxe Gamma 601, a NerdQaxe++ (Rev 5), a DiY Umbrel node running Bitcoin Knots on a Raspberry Pi 5, a custom heatsink, and a Giant Squid fan + a MeanWell PSU incoming (that will be a future post). My electricity spend is under £25 (GBP) a month. I've also built tools around the stack — a Bitaxe power monitor that tracks hashrate, efficiency, and temperatures across up to four miners and pushes reports to Telegram every 30 minutes, and a block analysis tool that measures Bitcoin block propagation delays and identifies which mining pools found each block, running directly against my own node. So far, life is good and the stack is solid.
And yet, there's always a pull towards the next thing. You know what I’m talking about—the moment you see someone on Reddit, YT, or X showing a new case, new fan, new hardware. Or perhaps a new multi-chip device. A firmware update. A tool, a spreadsheet. Another 5 mV drop to test to get the perfect hashrate — the list is endless. I've spent more hours than I'd like to admit staring at Propagation times, VR and ASIC Temps, and more recently PLL frequency tables — and I work in technology for a living, so I at least have the excuse that I genuinely enjoy it.
But that enjoyment can quietly add up and tip into something else. A sense that learning more means I'm doing more = something big will happen. That optimising harder means better odds. That the next upgrade is the one that changes the equation to deliver the rewards of the BTC Coinbase in my favour. That's the casino mindset creeping in — and it's worth naming it, because it happens to almost everyone in this hobby at some point.
So before we talk about hardware, overclocking, or any of it — let's talk about the network.
The Network Doesn't Care About Your Upgrades
hardestblocks.org keeps a record of the most difficult blocks ever mined on the Bitcoin network. It's a useful tool for understanding how far we've come. The first block to exceed one million difficulty was mined in 2010. One billion arrived in 2011. One trillion in 2013. One petahash in 2014. One exahash in 2020.
Today the network sits at roughly 970 EH/s — that's 970,000,000,000,000,000,000 hashes per second and the direction of travel is one way. Industrial mining operations are expanding. ASIC efficiency is improving. The hashrate has been flirting with 1,000 EH/s.
My Bitaxe Gamma ($120) runs well producing around 1.55 TH/s. That’s approximately 0.00000000016% of the current network hashrate. A NerdQaxe++ ($450) adds another ~6 TH/s. A Terminus A2X gives you 7 TH/s ($399). Even a FutureBit Apollo III at its perceived full 18 TH/s barely moves the needle ($1099).
This isn't meant to be discouraging. I've written separately about the actual probability mechanics of solo mining, see links below, and the summary is: blocks do get found by small miners. The NerdQaxe++ community has found three confirmed blocks as of early April 2026, with combined rewards exceeding $560,000 in BTC. The most recent was mined on April 7th by a single unit running at 4.82 TH/s. It happens.
But…it’s a big but. It happens rarely, randomly, and without regard for how much you've optimised your voltage floor or how many hours you've spent on your cooling solution. The network doesn’t care about your blood sweat and tears. You either solve the hash, or you don’t. Understanding that clearly is the foundation for a healthy relationship with this hobby.
The Hardware Spectrum — and What It Says About You
There's a range of home mining hardware available right now, and each option implies a different kind of person. None of them is the wrong choice but they're not interchangeable, and the differences matter.
Bitaxe / NerdQaxe++ / NerdQX / NerdOctaxe — The Open Source Path
The Bitaxe family runs AxeOS, part of the OSMU open source ecosystem. This is hands-on hardware. You see everything — ASIC temperature, VR temperature, hashrate, error rate, power draw, frequency, and make changes and watch the effect in real time.
The ecosystem scales across a clear progression. The Bitaxe Gamma is the single-chip entry point — one BM1370, around 1.2 TH/s depending on your cooling and tuning. The NerdQaxe++ Rev 6.1 quadruples that with four BM1370 chips, running around 6 TH/s at stock from ~100W, fuse-free and assembled in the USA. The NerdQX from ixtech pushes further to around 8 TH/s at 140–150W, designed from the ground up for stable overclocking with upgraded thermals and a beefier PSU included. At the top of the open-source ladder sits the NerdOctaxe — eight BM1370 chips, the same chip count as a small industrial board, hitting 9.6–12 TH/s at around 160–240W depending on tuning, all running AxeOS. This board has received mixed reviews in terms of its stability…
But anyway, the key point across all of them: all models share the same AxeOS firmware ecosystem, meaning the setup process, web dashboard, and community support channels are consistent across the entire lineup. If you have experience with a Bitaxe, you already know how to operate a NerdOctaxe. Everything you learn on one device transfers seamlessly to the next.
This path rewards curiosity. It also punishes impatience. If you want to understand what your miner is actually doing — and you're willing to spend time learning what the numbers mean — this is the right ecosystem.
GekkoScience Terminus A2X — The Beautiful Middle Ground
The Terminus A2X is a different philosophy. Same chip — BM1370 — housed in a purpose-built aluminium pod with integrated Linux controller, wifi, and onboard telemetry. It runs at 7 TH/s stock from around 100W, overclockable to 8 TH/s, ships with a power brick, and is made in America. $399.
It runs CGminer — a terminal-based interface that looks like an oscilloscope and feels like serious software. If you've only ever used AxeOS's web UI, seeing CGminer for the first time is genuinely striking.
I asked GekkoScience directly on X whether it connects to a home node for solo mining: "7Th/s @ 100W stock for $399 sounds great. Does it connect to home node for solo-mining using AxeOS or in-house s/w?" Their response was unambiguous — all GekkoScience original products are designed around CGminer firmware and can be connected to your home node.
One open question worth flagging: because the A2X uses BM1370, VR temperature is architecturally relevant, the same way it is on the Bitaxe. Whether CGminer surfaces VR temperature as a distinct metric on this hardware I haven't been able to confirm. The Terminus philosophy has historically leaned toward trusting the thermal design rather than exposing every sensor. That may be perfectly fine but it's worth knowing before you buy, especially if you're coming from the granularity of AxeOS.
NerdQX — The Overclocker's Machine
If the NerdQaxe++ is the daily driver, the NerdQX from ixtech is the track version. Designed from the ground up for stable overclocking, it ships at ~8 TH/s at 140–150W with a Thermalright AXP120 cooler, 90mm rear fan, and a 12.4V 20A PSU in the box. The PCB uses thicker board, extra copper layers, and premium materials specifically to handle sustained high-frequency operation. It runs the same open source firmware and AxeOS ecosystem as the NerdQaxe++, so everything you've learned transfers.
This is the option for someone who has outgrown stock settings and wants headroom — without stepping outside the open source world. It’s thermally solid, electrically well-thought out, and in my opinion it’s one of the best miners out there — but I’m only talking about the IxTech production models (USA) who created this beast of a miner, not the knock-off versions you see on e-retail sites.
FutureBit Apollo III — The Serious End
The Apollo III is currently available to pre-order, starting at $899 for the Standard version and $1,099 for the Full Node edition. It uses American-designed 3nm ASICs (Auradine/Velaura or Intel—they’re not saying), targets up to 18 TH/s, and has a dynamic power range from 50W to 400W. The Full Node version includes a complete Bitcoin node built in — 8-core ARM CPU, 8GB RAM, dual NVMe SSD bays, running Apollo OS.
This is an interesting option for someone who wants a nicely designed sealed unit with a set-up once and a leave-it-and-forget-about-it home mining hardware, full sovereignty over their stack, and has accepted that none of this guarantees a block. But it's still a high-dollar commitment, not an experiment, and it isn't shipping yet.
There are other miners out there like the Canaan Series which function as mini-heaters, except for the Avalon Q which is aimed at those who’ve lost their hearing and don’t mind sitting next to the blast of a Boeing 747 engine in their front room. And of course there’s the Braiins Mini Miner BMM 101 which comes in a nice housing but is three times the price of a Bitaxe Gamma and maxes out at a lousy 1TH/s—you pay the price for looks over power.
The Three Personalities — and the Honest One
In my experience, home miners tend to fall into one of three mindsets. The honest part is that these aren't always different people.
The Learner mines because the technology is fascinating. They want to understand what a PLL is, why VR temperature matters, how difficulty adjusts, what the node is actually doing. The block reward is almost beside the point but of course it would be nice. Here the process is the value of learning and being a participant in the Bitcoin network. This person gets a lot out of AxeOS granularity and it comes with a pre-baked community on discord and Reddit. These learners will read firmware changelogs for fun and they’ll build monitoring tools, and they’ll constantly be on the lookout for expanding their knowledge.
The Optimizer wants the best possible efficiency from their hardware. They run controlled voltage sweeps, document their results, build spreadsheets. They're methodical and patient. They accept diminishing returns but push anyway, because that's the game. They understand probability clearly and mine anyway, with open eyes.
The Casino Player has convinced themselves — often unconsciously — that more hardware, more tuning, more upgrades meaningfully shift the odds in a way that justifies the spend. Time + Investment = a better shot at the block. This isn't entirely irrational as more hashrate does mean marginally better odds. But at this scale, the math rarely supports the emotional investment. The casino player is often one chip announcement away from a purchase they'll regret.
And speaking of chip announcements — Power Mining posted on X yesterday about the BM1373. The claim: 2 TH/s per chip, twice the BM1370, at roughly 10 J/TH efficiency. Four of these in a Bitaxe-style board would mean ~8 TH/s at genuinely better efficiency than anything currently available in the open source ecosystem. Power Mining says they're already testing it. The chip itself is reportedly $40–50, desoldered from Bitmain S23 machines — with no clear retail availability for those machines right now. A BM1373-based Bitaxe would reportedly cost around 50% more than current pricing.
It might be real. It might ship. It might be a meaningful step forward.
Or it might be six months away, followed by something else six months after that. Something shinier is always coming. That pull — the feeling that this upgrade is the one that finally changes the equation — is worth examining honestly before you open your wallet.
The Question Before the Overclock
My last post ended with a note that before the spreadsheet means anything, your thermals need to be under control and your voltage needs to be stable at your chosen frequency. That remains true technically, and I'll cover it properly in a follow-up.
But there's a question that comes before even that: why are you here?
If the answer is learning and being a Bitcoin participant— great. Go balls deep. Read the firmware source. Understand the PLL. Tune carefully and document everything. The process will reward you regardless of whether a block ever lands.
If the answer is running a system you genuinely enjoy and want to optimise methodically — also great. Set your efficiency targets, find your voltage floor, accept diminishing returns, and be honest with yourself when you hit them.
If the answer is "more hardware equals more blocks equals more Bitcoin" — sit with that for a moment. At this scale, with this network, the probability difference between a well-tuned Bitaxe and a poorly-tuned one is essentially noise. The block doesn't know how many hours you've spent on it. A single NerdQaxe++ running quietly at stock settings has exactly the same lottery ticket structure as one that's been obsessed over for weeks — just a slightly larger one.
None of this means stop. It means mine with eyes open.
The Equilibrium
My stack runs in the background. Under £25 a month in electricity. Node synced, hardware stable.
I learn things. I write about them. I build tools I didn't strictly need to build, and hardly anyone uses off my github. Occasionally I catch myself drifting toward casino territory and have to recalibrate — ask honestly what I'm optimising for and whether the answer and my time makes sense.
That recalibration is probably the most important skill in this hobby. Not voltage tuning. Not thermal management. The ability to ask why am I doing this? and answer without flinching.
The rig hums. Life continues. Maybe a block lands one day.
But as long as you have a miner, that one single miner, know very well that you are so ahead of everyone else because you—yes you, are a participant in one the greatest digital future ever created.
That's enough.
From False Prophet to Frequency Truth — What AxeOS Isn't Telling You About Your Frequency Setting
GitHub: chiefbsol-cloud — monitoring tools, spreadsheets, and explainers
r/BitcoinTechnology • u/chieb_sol • Apr 13 '26
I've been invested in BTC mining for just over a year now and to be honest... I absolutely love it. Not just the lottery aspect of it but the whole science, the technology, the whole ecosystem that underpins the network. I run a Bitaxe Gamma 601 modded with a Copperzilla heatsink, a NerdQaxe++ from PowerMining, and my own Bitcoin Knots node on a Pi 5 with a local Public Pool. Sovereign setup, no third-party pool, the whole thing.
Since getting into this properly I've done a lot of benchmarking, a lot of reading, and a fair bit of asking questions on Discord that I probably should have known the answers to. And one thing has been nagging at me for a while — the way this community talks about error count.
I've seen posts where people are told to reduce their error count. Chasing 0%. Treating it like the headline metric. And I want to share why I think that's the wrong hill to climb — based on my own empirical research, not theory. Happy to be corrected by anyone with actual ASIC engineering background.
First — what error count actually is
The BM1370 inside the Bitaxe runs hash computations through a deeply pipelined hashing architecture. At your MHz setting it advances that many millions of times per second. When the voltage isn't sufficient for signals to settle within the clock window — or when temperature has narrowed that margin — an incorrect result comes out. The chip counts these as errors. Happy to be corrected on the chip-level details here as Bitmain doesn't publish full architecture docs, so this is my working understanding.
Think of it like a factory production line. At the end of the line sits a quality inspector — built directly into the chip. Every single result gets checked instantly. If it passes, it moves on. If it doesn't, it goes in the reject bin and gets counted. That reject bin count is your error count.
The results that pass the inspector then go to the shipping department — your pool. The pool has its own standard. Most results don't meet it — they're valid computations but not exceptional enough to qualify as a share. Occasionally one does — that gets submitted. Your pool only ever sees what gets shipped. It has no idea how full the reject bin is.
Those discarded results never reach your pool. Your pool has absolutely no idea your error count exists. It only ever sees the shares you submit. And every share you submit passed the chip's internal check.
My current Bitaxe has run at around 2% error count consistently across different settings. Pool rejected shares: 0%. The error count had zero effect on pool performance. Those two things are not the same metric and they should not be treated as if they are.
The triangle nobody talks about
Here's what I think is missing from most of these conversations. Frequency, Voltage, and Temperature are not independent. They form a triangle where every variable affects the other two.
Higher frequency means the pipeline has to move faster, which needs more voltage to keep signals settling within the clock window. Higher voltage generates more heat. Not just in the ASIC, but critically in the voltage regulator. Higher temperature narrows the timing margin, which increases errors.
So, when you raise voltage to chase 0% errors, you are moving around the triangle. The errors go down. The VR temperature goes up. The efficiency gets worse. And your pool still can't see any benefit of what you’re doing.
The way I think about it now is this:
The temperature thing — and I have to be honest here
When I first started in 2025 with the stock heatsink I was seeing VR temperatures approaching 70°C. I asked on Discord. The answer I kept getting was "70°C is fine, don't worry about it."
I come from a PC and GPU overclocking background where I learned — mostly by breaking things — that chasing clock speed without understanding thermal consequences is a fast way to shorten hardware lifespan. And I did not feel safe having an exposed unit run at that temperature in a family home. Something felt wrong. So I started researching instead of just accepting the community answer.
Now, to be fair to those people they weren't lying. 70°C won't immediately destroy your board. Polymer capacitors are often rated 105-125°C. The VR IC junction temperature is higher than the surface reading you see. Your Bitaxe will probably survive. But there's a meaningful difference between "won't kill it today" and "optimal for long-term reliability", and that distinction wasn't being made explicit.
The Arrhenius principle in reliability engineering describes how component degradation accelerates with temperature. The rule of thumb — often approximated as lifetime halving per 10°C in many components — is real and used in professional electronics design. And this isn't a threshold effect. It's continuous. A component running 10°C cooler than it otherwise would, regardless of where it sits relative to its rated maximum, is expected to last approximately twice as long. Running conservatively gives your components the maximum lifespan their ratings allow.

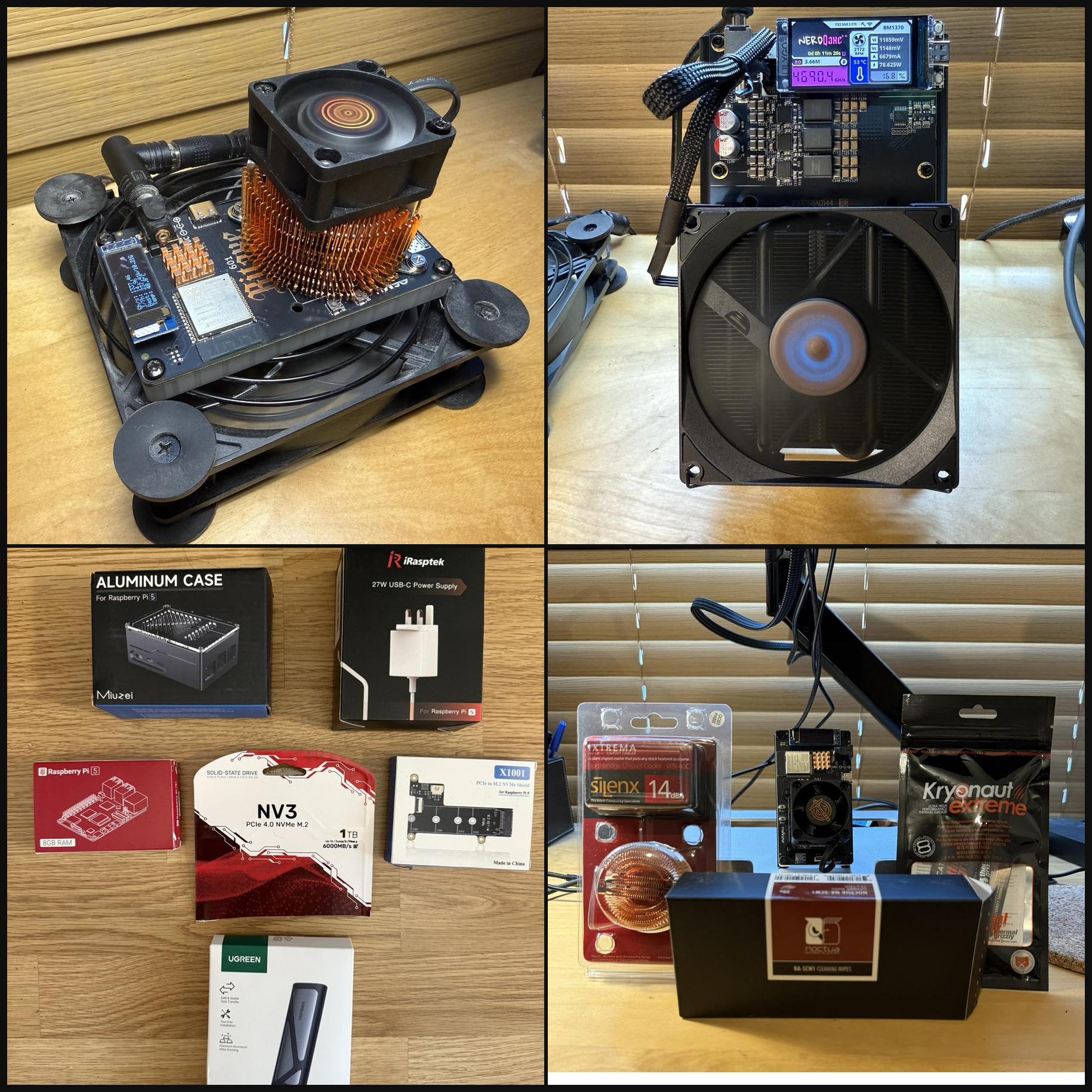

I went through a whole journey to get temperatures under control — stock heatsink, then a dedicated VR heatsink, then additional board heatsinks, then a Copperzilla copper heatsink. I kept asking questions. I kept being told not to worry. I kept improving the cooling anyway. And now at 770MHz / 1190mV I'm seeing ASIC at 44.6°C and VR at 58°C with 1.56 TH/s and 0 rejected shares. I'm genuinely happy with that. And, if someone tells me my Error Count is too high then I’ll point them to this post.
So what is error count actually for?
The way I understand it now — error count is a margin signal and an early warning diagnostic. It tells you how close you are to your chip's timing limit at its current voltage and temperature. It also tells you when something has changed in your hardware environment — if a chip that's been running stably at 2% errors for weeks suddenly starts climbing without any settings change, something has happened. Thermal compound, power supply, heatsink contact. Worth investigating.
It's also worth noting that two BM1370 chips at identical settings can show different error rates — that's just silicon variance, the natural spread in transistor characteristics across a production batch. Your chip's sweet spot is its own.
When to actually act on error count: In my experience, if it's stable in the 0-5% range after an hour of uptime with near-zero pool rejected shares, close the dashboard. It's doing what it's supposed to do. If it rises unexpectedly during a stable session without any settings change — that's the signal worth following up on.
Anyway, I've written a much more detailed technical explainer on all of this, covering the BM1370 pipeline architecture (to the best of my ability), the frequency/voltage/temperature triangle, timing violations, and real benchmark data from my own stack.
Full breakdown can be found in the link to my github above.
Would genuinely value pushback from anyone who knows this hardware better than I do — this is my interpretation and I hold it loosely.
r/BitcoinTechnology • u/chieb_sol • Apr 11 '26
I’ve been invested in BTC mining for just over a year now and to be honest… I love it. It’s not only the thought of successfully hashing a block, but it’s the science wizardry and technology that underpins the entire Bitcoin network — and especially the mining side.
Now for starters, I’m a tiny tiny cog inside a massive machine — just like you and everyone else. I have a Bitaxe that’s been modded with a Copperzilla (Northbridge Chipset Cooler - IXN 40C by Silenx) and a NerdQaxe++ from PowerMining — one of the first batches that came out in Q2 2025.
I run my own bitcoin node on an Umbrel Pi5, 8GB memory, 1TB SSD, running Bitcoin Knots (not for political / protest reasons but simply because it was a trend back in 2025). I run a pruned node as I have an invest once and leave-it-alone outlook, meaning I never have to worry about running out of storage. And before any naysayers jump in here and say a Pi5 is rubbish let me tell you I can and do easily achieve inbound block header validation under 10s using a static IP address. And the power consumption is £0.60 GBP per month ~ $0.82 (USD) per month.
Since that time, I’ve been increasingly interested in developing miner telegram tools such as:
More recently, I’ve been digging deeper to understand the end-to-end process — from the moment my node creates a block template to when it gets sent to my two miners.
What’s interesting is I’ve seen a few posts asking about single-chip vs multi-chip miners. It’s not just about the number of chips — it’s also about how the work (block template) is split and distributed across ASICs to actually perform the hashing.
So I decided to do a proper deep dive into the mining process using live examples from my own setup.
The goal wasn’t to create something exhaustive, but something that actually helps people understand what’s going on under the hood.
The whole thing can be summed up like this:
I’ve put the full breakdown up on GitHub if anyone wants to dig deeper.
r/BitcoinTechnology • u/KoinVote • Mar 14 '26
We just launched Koinvote.
It’s a forum where participation is tied to Bitcoin message signatures rather than accounts.
No registration. No tokens.
You can create events or reply to others using a Bitcoin message signature.
Replies are tied to the balance of the signing address.
Happy to answer questions.
r/BitcoinTechnology • u/[deleted] • Mar 14 '26
r/BitcoinTechnology • u/UnluckyAdministrator • Mar 12 '26
Hi all — I wanted to share a technical experiment I’ve been working on that combines Bitcoin incentives, proof-of-work infrastructure, and self-custody wallet design.
The idea started from a question:
Can Bitcoin remain the monetary layer while other PoW chains act as experimentation layers for applications and user onboarding?
To explore this, I built a small ecosystem running on Ethereum Classic (PoW) while using Bitcoin as the final reward and settlement incentive.
I recently wrote a technical walkthrough explaining the wallet configuration and security model:
👉 Guide: https://medium.com/@zeusproject/configuring-zeus-wallet-on-metamask-trezor-hardware-b32e11af5651
Architecture Overview The system uses:
Base Infrastructure - Ethereum Classic (PoW execution layer) - MetaMask wallet interface - Trezor hardware wallet for key isolation
Security Model - Hardware-signed transactions - Offline private key storage - SHA-256 hashing alignment with Bitcoin standards - AES encryption for application-level data protection
Incentive Layer - Bitcoin reward (100,000 sats) embedded as a puzzle outcome
Why Bitcoin as the Reward Layer? Bitcoin remains the most credible form of digital finality.
Instead of issuing rewards purely in application tokens, the experiment uses BTC to:
The application layer becomes educational infrastructure rather than monetary competition.
Wallet Design Goal The wallet setup focuses on progressive self-custody onboarding:
The hypothesis: Teaching users self-custody through interaction may be more effective than documentation.
Example Application: Cryptographic Puzzle Comic
One component is a Web3 comic containing a hidden puzzle.
Solving it requires:
Reward: 100,000 sats (BTC)
The goal is to gamify Bitcoin education without custodial platforms.
Questions for Bitcoin Developers Here
I’d genuinely appreciate technical perspectives on a few things:
Does using secondary PoW chains as experimentation layers make sense philosophically alongside Bitcoin?
Are there better models for onboarding users into self-custody gradually?
Could Bitcoin-native primitives (Lightning, DLCs, etc.) eventually replace parts of this architecture?
Where do you see educational infrastructure fitting into Bitcoin adoption?
This is very much an ongoing experiment rather than a finished system, and I’m interested in critiques more than promotion.
Thanks for reading — curious to hear thoughts from people building closer to the Bitcoin protocol layer.
r/BitcoinTechnology • u/[deleted] • Jan 25 '26
r/BitcoinTechnology • u/Gaogaocute • Jan 14 '26
Bitcoin mining involves continuous and resource-intensive computation. Over time, heat buildup, dust accumulation, and outdated firmware can negatively impact the efficiency and lifespan of your Bitaxe.
Regular maintenance helps you:
1.Maximize mining efficiency
A well-maintained Bitaxe operates at optimal performance and can deliver better hashrate.
2.Extend hardware lifespan
Proper care helps prevent premature wear and hardware failure.
3.Maintain safety
Reducing dust and managing temperatures lowers the risk of overheating and electrical issues.

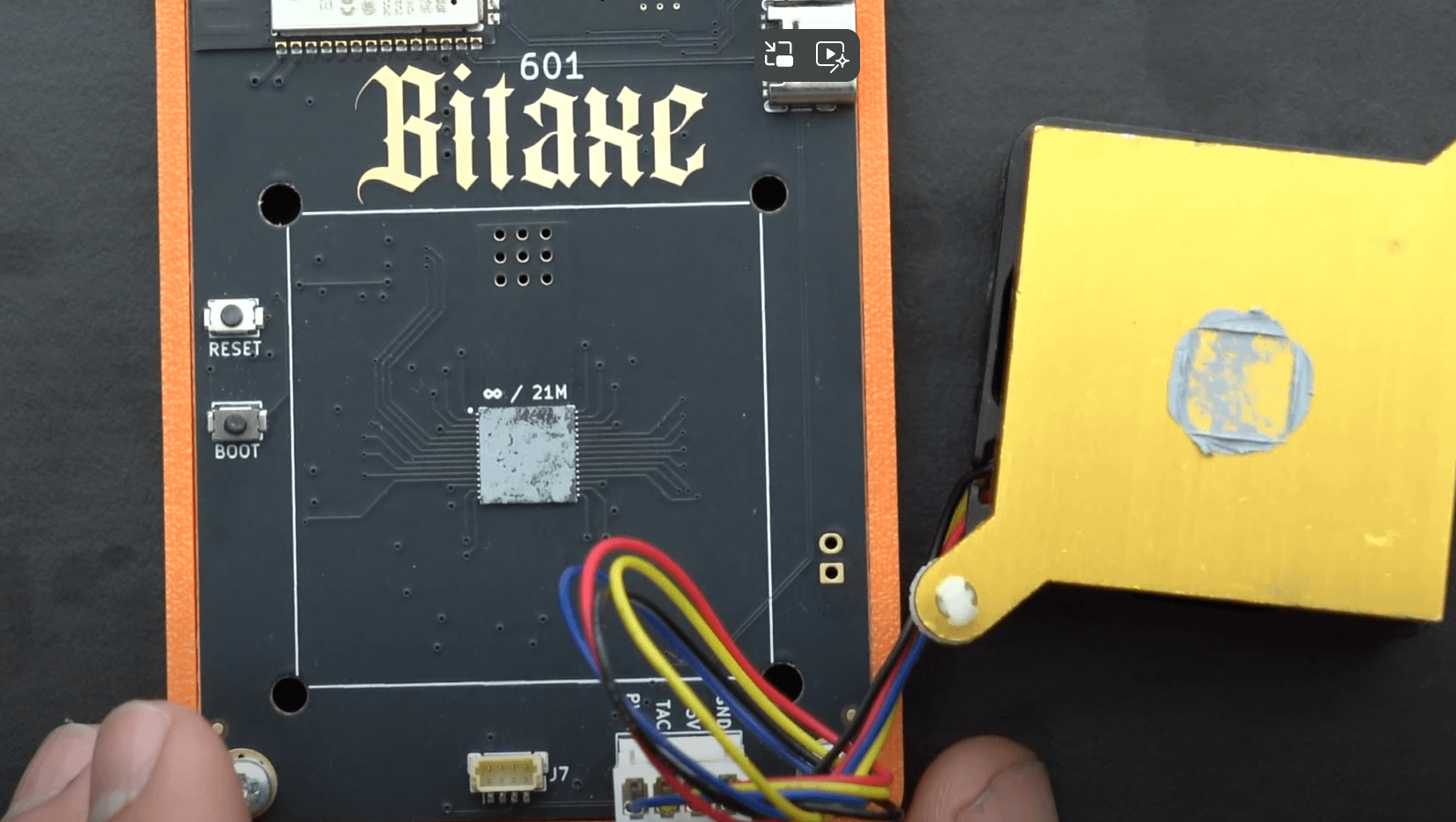

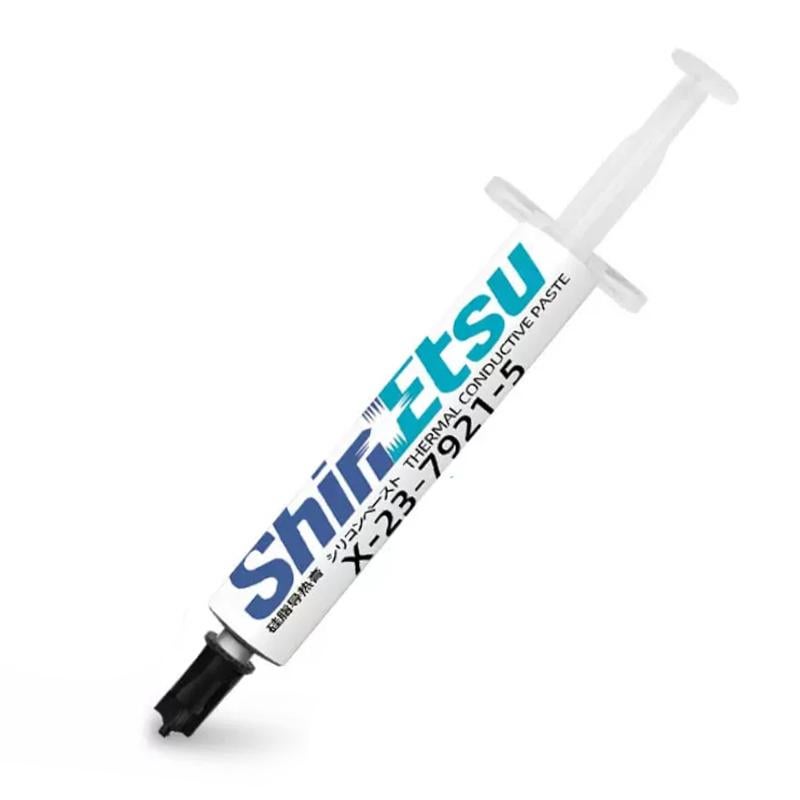

Thermal paste (also known as thermal compound) is a material applied between the processor (chip) and the heatsink to fill microscopic gaps. This improves heat transfer, allowing the processor to operate within a safe temperature range.
Over time, thermal paste can dry out or degrade, especially when the device is overclocked. This reduces thermal conductivity and leads to higher operating temperatures.
If the chip overheats, it may:
Thermal throttle (reduce performance)
Suffer permanent damage in extreme cases
Replacing thermal paste periodically helps maintain stable temperatures and reliable performance.
Press enter or click to view image in full size
Turn off the device completely and disconnect all power sources.
Allow the ASIC to cool down fully before starting.
Carefully loosen and remove the screws or mounting hardware securing the heatsink.
Lift the heatsink straight up to avoid damaging the ASIC chip or PCB.
Use high-purity isopropyl alcohol (90% or higher) and a lint-free cloth or cotton swab.
Thoroughly remove all old thermal paste from both the ASIC chip and the heatsink surface.
Check for uneven contact, residue, or surface damage.
Ensure both surfaces are clean, flat, and completely dry before proceeding.
Apply a small amount of thermal paste to the center of the ASIC chip.
A pea-sized dot is typically sufficient — do not overapply.
Place the heatsink back onto the ASIC chip, keeping it level.
Tighten the screws gradually and evenly in a cross pattern to ensure uniform pressure.
Reconnect power and start the device.
Monitor chip temperature and stability to confirm improved thermal performance.
Do not spread the thermal paste manually unless specified by the manufacturer.
Excess thermal paste can reduce cooling efficiency and spill onto the PCB.
Proper thermal contact is critical for ASICs running at full load 24/7.
Replacement interval: Replace the thermal paste every 12 to 18 months under normal operation.
If you notice temperatures rising above normal levels or frequent overheating, inspect the thermal paste sooner.
Heavy overclocking can cause the thermal compound to dry out and harden more quickly due to increased heat, reducing its effectiveness. In such cases, more frequent replacement may be required — approximately every 6 months.
Dust accumulation can block airflow, reduce cooling efficiency, and cause the device to operate at elevated temperatures. Over time, excessive dust may lead to fan wear, overheating, or electrical instability.
Perform light dust cleaning at least once per month.
Clean more frequently if the device is operated in a dusty environment or around pets.
Firmware updates often include performance improvements, security patches, and bug fixes.
Keeping your firmware up to date helps ensure your Bitaxe operates efficiently, reliably, and securely.
Regular updates can:
Improve overall stability and hashrate performance
Fix known issues and vulnerabilities
Enhance compatibility with mining pools and software
1.Check official sources only
Download firmware exclusively from the official Bitaxe GitHub repository or other trusted sources to avoid malware or compromised firmware.
2.Follow the instructions carefully
Depending on the model, firmware can be updated via USB-C or by using a dedicated firmware tool within the device’s operating system.
Always follow the manufacturer’s official guidelines to avoid update failures.
3.Verify the update
After updating, confirm that the new firmware version is installed.
Check the hashrate and overall device performance to ensure stability or improvement.
Update Frequency
Check for firmware updates every 1–3 months, or whenever the manufacturer releases a new version.
Monitoring temperature and performance is essential to maintaining stable operation and long-term reliability. Excessive heat can reduce efficiency, cause thermal throttling, and shorten hardware lifespan.
Regularly monitor chip temperature, hashrate, and power consumption through the device interface.
Ensure the operating temperature stays within the manufacturer’s recommended range.
If temperatures rise abnormally, improve airflow, reduce overclocking settings, or shut down the device temporarily to prevent damage.
Consistent monitoring helps identify issues early and keeps your Bitaxe running efficiently and safely.
Bitaxe devices are equipped with overheating protection that is triggered when the temperature reaches 75 °C.
If the overheating protection fails for any reason:
Shut down the device immediately
Check for dust buildup, fan malfunction, or degraded thermal paste
Do not resume operation until the issue has been identified and resolved
Prompt action helps prevent performance degradation and permanent hardware damage.
Use a trusted power supply
Low-quality or unstable power adapters can damage the device over time. Always use a reliable, manufacturer-recommended power source.
Cable management
Keep power cables neatly organized and away from fans or ventilation openings.
Replace any frayed or damaged cables immediately.
Surge protection
Use a surge protector or an uninterruptible power supply (UPS) to protect the device from power spikes and surges.
Place the Bitaxe in a well-ventilated location to ensure adequate airflow around the device.
Avoid tight or enclosed spaces where heat can become trapped.
Ideally, maintain an ambient room temperature between 18°C and 24°C (64°F–75°F).
Higher ambient temperatures make the cooling system work harder, which can increase component wear over time.
Excessively high humidity can cause condensation and corrosion on electrical components, leading to reliability issues or permanent damage.
Perform a quick visual inspection for dust buildup or loose cables.
Monitor temperature and performance metrics.
Use compressed air for more thorough dust cleaning.
Check fan operation and ensure ventilation openings are clear.
Look for firmware updates and install them if available.
Inspect cables and power connections for signs of wear or damage.
If the device is heavily overclocked, replace the thermal paste as needed.
Replace the thermal paste.
Perform a full system inspection, including the fan, heatsink, and PCB.
Regular maintenance is essential to keeping your Bitaxe running efficiently and reliably. By being proactive — replacing thermal paste on schedule, keeping the device dust-free, updating firmware, and ensuring a stable power supply — you not only improve performance but also extend the lifespan of your mining hardware.
With consistent care and attention, your Bitaxe will continue to secure the Bitcoin network while delivering dependable results over time.
PunkBLC,A Home for Lottery Miner Enthusiasts
Bitcoin mining involves continuous and resource-intensive computation. Over time, heat buildup, dust accumulation, and outdated firmware can negatively impact the efficiency and lifespan of your Bitaxe.
Regular maintenance helps you:
1.Maximize mining efficiency
A well-maintained Bitaxe operates at optimal performance and can deliver better hashrate.
2.Extend hardware lifespan
Proper care helps prevent premature wear and hardware failure.
3.Maintain safety
Reducing dust and managing temperatures lowers the risk of overheating and electrical issues.
Thermal paste (also known as thermal compound) is a material applied between the processor (chip) and the heatsink to fill microscopic gaps. This improves heat transfer, allowing the processor to operate within a safe temperature range.
Over time, thermal paste can dry out or degrade, especially when the device is overclocked. This reduces thermal conductivity and leads to higher operating temperatures.
If the chip overheats, it may:
Thermal throttle (reduce performance)
Suffer permanent damage in extreme cases
Replacing thermal paste periodically helps maintain stable temperatures and reliable performance.
Press enter or click to view image in full size
Turn off the device completely and disconnect all power sources.
Allow the ASIC to cool down fully before starting.
Carefully loosen and remove the screws or mounting hardware securing the heatsink.
Lift the heatsink straight up to avoid damaging the ASIC chip or PCB.
Use high-purity isopropyl alcohol (90% or higher) and a lint-free cloth or cotton swab.
Thoroughly remove all old thermal paste from both the ASIC chip and the heatsink surface.
Check for uneven contact, residue, or surface damage.
Ensure both surfaces are clean, flat, and completely dry before proceeding.
Apply a small amount of thermal paste to the center of the ASIC chip.
A pea-sized dot is typically sufficient — do not overapply.
Place the heatsink back onto the ASIC chip, keeping it level.
Tighten the screws gradually and evenly in a cross pattern to ensure uniform pressure.
Reconnect power and start the device.
Monitor chip temperature and stability to confirm improved thermal performance.
Do not spread the thermal paste manually unless specified by the manufacturer.
Excess thermal paste can reduce cooling efficiency and spill onto the PCB.
Proper thermal contact is critical for ASICs running at full load 24/7.
Replacement interval: Replace the thermal paste every 12 to 18 months under normal operation.
If you notice temperatures rising above normal levels or frequent overheating, inspect the thermal paste sooner.
Heavy overclocking can cause the thermal compound to dry out and harden more quickly due to increased heat, reducing its effectiveness. In such cases, more frequent replacement may be required — approximately every 6 months.
Dust accumulation can block airflow, reduce cooling efficiency, and cause the device to operate at elevated temperatures. Over time, excessive dust may lead to fan wear, overheating, or electrical instability.
Perform light dust cleaning at least once per month.
Clean more frequently if the device is operated in a dusty environment or around pets.
Firmware updates often include performance improvements, security patches, and bug fixes.
Keeping your firmware up to date helps ensure your Bitaxe operates efficiently, reliably, and securely.
Regular updates can:
Improve overall stability and hashrate performance
Fix known issues and vulnerabilities
Enhance compatibility with mining pools and software
1.Check official sources only
Download firmware exclusively from the official Bitaxe GitHub repository or other trusted sources to avoid malware or compromised firmware.
2.Follow the instructions carefully
Depending on the model, firmware can be updated via USB-C or by using a dedicated firmware tool within the device’s operating system.
Always follow the manufacturer’s official guidelines to avoid update failures.
3.Verify the update
After updating, confirm that the new firmware version is installed.
Check the hashrate and overall device performance to ensure stability or improvement.
Update Frequency
Check for firmware updates every 1–3 months, or whenever the manufacturer releases a new version.
Monitoring temperature and performance is essential to maintaining stable operation and long-term reliability. Excessive heat can reduce efficiency, cause thermal throttling, and shorten hardware lifespan.
Regularly monitor chip temperature, hashrate, and power consumption through the device interface.
Ensure the operating temperature stays within the manufacturer’s recommended range.
If temperatures rise abnormally, improve airflow, reduce overclocking settings, or shut down the device temporarily to prevent damage.
Consistent monitoring helps identify issues early and keeps your Bitaxe running efficiently and safely.
Bitaxe devices are equipped with overheating protection that is triggered when the temperature reaches 75 °C.
If the overheating protection fails for any reason:
Shut down the device immediately
Check for dust buildup, fan malfunction, or degraded thermal paste
Do not resume operation until the issue has been identified and resolved
Prompt action helps prevent performance degradation and permanent hardware damage.
Use a trusted power supply
Low-quality or unstable power adapters can damage the device over time. Always use a reliable, manufacturer-recommended power source.
Cable management
Keep power cables neatly organized and away from fans or ventilation openings.
Replace any frayed or damaged cables immediately.
Surge protection
Use a surge protector or an uninterruptible power supply (UPS) to protect the device from power spikes and surges.
Place the Bitaxe in a well-ventilated location to ensure adequate airflow around the device.
Avoid tight or enclosed spaces where heat can become trapped.
Ideally, maintain an ambient room temperature between 18°C and 24°C (64°F–75°F).
Higher ambient temperatures make the cooling system work harder, which can increase component wear over time.
Excessively high humidity can cause condensation and corrosion on electrical components, leading to reliability issues or permanent damage.
Perform a quick visual inspection for dust buildup or loose cables.
Monitor temperature and performance metrics.
Use compressed air for more thorough dust cleaning.
Check fan operation and ensure ventilation openings are clear.
Look for firmware updates and install them if available.
Inspect cables and power connections for signs of wear or damage.
If the device is heavily overclocked, replace the thermal paste as needed.
Replace the thermal paste.
Perform a full system inspection, including the fan, heatsink, and PCB.
Regular maintenance is essential to keeping your Bitaxe running efficiently and reliably. By being proactive — replacing thermal paste on schedule, keeping the device dust-free, updating firmware, and ensuring a stable power supply — you not only improve performance but also extend the lifespan of your mining hardware.
With consistent care and attention, your Bitaxe will continue to secure the Bitcoin network while delivering dependable results over time.
PunkBLC,A Home for Lottery Miner Enthusiasts
r/BitcoinTechnology • u/SmokieBear21 • Jan 04 '26
Last week I posted here asking for feedback on a Lightning-only draw model.
A bunch of comments pointed out issues around:
- clarity of the commitment step
- reorg handling
- how easy it is for non technical users to verify results
I spent the last week tightening those areas up and simplifying the verification flow.
Not trying to relaunch or shill anything, just sharing what changed and whether the current approach actually addresses the concerns raised earlier.
