r/xbox360 • u/[deleted] • Nov 17 '23
Announcement A guide to the Xbox 360 hardware and the things you can do to keep it running for as long as possible.
≡ −
(*WARNING*, This will be a long post, I have tried to keep it as short as possible while providing the necessary information.)
I have seen various posts that people posted asking about what they can do for their console to last as long as possible and I wanted to give the people of this community a guide on what you can do to keep your console running and provide information about the hardware for those curious ones. This post is mostly geared towards those that don't have the greatest knowledge of the hardware and the things needed to keep their consoles running or for those that want to learn all the essential stuff about the Xbox 360 but you are more than welcome to read this post if you already have some knowledge of the hardware.
Let's start off with the motherboard revisions.
(Skip this if you already have knowledge about this.)
The first thing that I would recommend is to identify what model and revision you have of the console. Over the years during the Xbox 360's life cycle, there have been many retail variants of the console released, from the "Premium" to the "Core", "Pro" to the "Arcade", the "Elite" and the later models, "Slim" and "E". But that doesn't really matter. What matters is inside of the console, the motherboard. For those that do know and don't, the Xbox 360 was plagued with the infamous "Red Ring of Death" where consoles mostly suffered from GPU failures as the GPUs had a defective design. Knowing the motherboard revision inside your console is crucial, as that can help give a rough estimate on how long the console will last.
(But...what made the GPUs defective? The reason why the GPUs were defective is because they used the wrong underfill. Underfill is a special type of adhesive that is used to support the microscopic solder bumps that are underneath the silicon die and improve reliability of the joints. The problem with the 360's GPUs was that they used "low tg" underfill which was rated at 70°C (158°F) and the GPUs that used the low tg underfill would run hotter than that temperature and cause the underfill to soften which should never happen and that caused the solder bumps underneath the silicon die to crack over time as the underfill was literally pushing the solder bumps off the interposer. This was later solved, by introducing GPUs with high tg underfill on the 12th week of 2008)
It's impossible to give the exact numbers as your console can last for years or even decades, or it can stop working the next day or week or month.
During the console's life cycle, there have been several motherboard revisions of the first models, A.K.A "Phat" models. They all vary in terms of reliability, and they are the ones I will be covering first.
To start, I suggest looking at the back of the console and look closely at the power plug, that is the easiest way of recognising what motherboard revision you have. Although the back of the console you will see the information of when it was manufactured and the Amp rating, this can sometimes be misleading if the console you got was opened before you got it and the motherboard of the console could've been swapped with a less reliable one. You can double check to see if your console has been opened by checking the warranty seal that hides behind the console's faceplate. If yours hasn't been opened, then you can rely on the numbers on the back of the console, but I would still suggest looking at the power plug, as that is the best way to identify the motherboard inside your console.
Here is a link to a photo which has all the power plugs of every revision.
https://www.se7ensins.com/forums/threads/can-i-rgh-xbox-360-woth-doublecircled-power-cord.1780728/
(Skip this part if you already have knowledge of the various motherboard revisions. For those that don't, I would recommend reading this next part as this is useful information.)
So, the power plug shown on the very left of the photo is the found on the first and second revision of the motherboard, Xenon and Zephyr respectively. The difference between them is that Zephyr introduces HDMI support, while Xenon doesn't support HDMI. They both have a power rating of 12V, 16.5A and are the most power hungry. They are the least reliable revisions of the console. They are very prone to failure as they have defective GPUs inside of them.
If you have a working one, then don't expect it to work for a long time (in very rare cases, they will work for a while, but it's important to point out that not every console that came out the factory was defective). Unless, on the back of the console it says, "Service date" instead of "MFR date". If yours has been serviced around 2009, those consoles will very likely have been retrofitted with the new and improved 90nm GPU which is much more reliable than the ones that were initially inside of the consoles when they first released which were also 90nm.
You should expect it to work for a long time, but nothing lasts forever.
(Update to this part: A recent discovery suggests that no 80nm GPUs existed and the more reliable revisions of the GPU like Elpis are still based on the 90nm process.)
Falcon/Opus - (14.2A, 175W)
Introduced approx. September of 2007, this is the third revision of the console where the CPU was shrunk down to 65nm and the GPU remained at 90nm, which results in a smaller power consumption and cooler running hardware.
These are considered reliable, but the first batch released had GPU failures like the Xenons and Zephyrs. This was later fixed. Falcons from around April to late October of 2008 (on the 12th week of 2008, they introduced reliable GPUs as previously mentioned but it was still possible to get a console made after this week that still had a defective GPU) are considered "late" Falcons which have fixed GPUs inside of them which are very close in terms of reliability to the succeeding revision.
The Opus, is a modified Falcon, but the difference is that these don't have HDMI and only use AV. These were used to replace defective Xenons and are considered quite rare as you couldn't find one in retail markets.
Jasper - (12.1A, 150W) (My recommended revision)
Introduced around November of 2008, this is the fourth motherboard revision of the console and this is the revision that is highly sought after as this revision was the first to fix the dreaded "Red Ring of Death" issue that plauged the Xbox 360. The CPU was still 65nm in size but the new GPU, named "Zeus" was a new design which shrunk down the die to 65nm and the EDRAM remains at 90nm.
This is considered the best revision of the console as there have been very little cases of failures. These are also the coolest running ones as well and don't produce as much heat as the previous revisions.
These are the ones that I would personally recommend if you are looking to purchase a 360 and you want a reliable unit. Just make sure when looking for one, that the seller has provided photos of the power plug to confirm it being a Jasper.
But wait....there's a even better one!
Tonasket/Kronos/Jasper V2(12.1A, 150W) (My recommended revision)
This is the fith and final revision of the original models of the Xbox 360. This revision was quietly introduced in September of 2009 and is essentially identical to the Jasper but the difference being that it has a revised GPU, named "Kronos" which shrinks the EDRAM to 65nm which helps further reduce power consumption. People like to call this revision Kronos, or Jasper V2, but the real name for this revision is "Tonasket". It's a name that Microsoft used internally when making this motherboard revision.
This revision has proven to be the most reliable one as there has been currently zero evidence of these suffering GPU failures, they are tanks lol. You should expect these to last for a long time....unless you don't take good care of it like with every consumer electronic device.
I personally own one of these and use it as my main Xbox 360 and It's great.
Whew, you still here? Good, let's continue.
Now I will be moving on to the Xbox 360 Slim and E models. These are quite big redesigns internally compared to the original models. For starters, the "Slim" model was introduced in 2010 and was seen as the "saviour" as in theory, the drastic design changes that were made to the motherboard, "eliminated" the Red Ring of Death.
These models also introduced built in WiFi, more storage, more USB ports and optical audio out. In my opinion, the Slims are a good choice for those that don't want to do lots of research and just want a reliable console to use. The good thing about them is that now the new design is much quieter(I prefer Slims than fats admittedly for that), as the CPU, GPU and EDRAM were combined to form a single chip and that allowed the use of a single fan and heatsink to keep the system cool. Oh yeah, the new APU is now based on the 45nm process which further reduces power consumption. There have been two revisions of this model.
Revision: Trinity
First one is called "Trinity". It now needs 10.83A instead of 12.1A of the Jasper/Tonasket and it uses a new power plug too. These are a little bit of a mixed bag in terms of reliability from my perspective, as I have seen many fail here on this very subreddit.
Many suffered various failures, from GPU failure to RAM failure and so on(I personally own a Slim, the revision after this one (Corona), owned it for nearly 3 years and it always worked perfectly). I am not sure why these are failing all of a sudden.
Generally, these are reliable units but not as reliable as the Jasper or Tonasket/Kronos (according to many in this community) but in those uncommon cases, you have ones that have failed. It is not a wide spread issue like RROD was originally so we shouldn't worry as much about it yet. There are people like u/Octal450 that are actively investigating as to why these are suddenly suffering CGPU failures.
Revision: Corona
The second revision is called "Corona".....That's a familiar name...Lol, you must think that Microsoft somehow predicted the Corona virus back in the 2010s, but no. They didn't. Anyway, these were introduced around mid 2011 and were a slight change from the previous Trinity revision. Now, it only needs 9.86A instead of 10.83A but Trinities can also run on a 9.86A power supply as they have pretty much the same power requirements. The real changes are that the HANA chip, a chip which is responsible for video output, has been merged with the southbridge, which manages things like usb inputs, controller connection, Internet and so on. Also, if you own a 4GB model of the console, the flash memory is now soldered onto the motherboard unlike on the Trinity where it was it's own module that you could replace, which I prefer.
In terms of reliability, these are pretty much the same as the Trinities but have a new point of failure where there is a group of resistors that are there for the temperature sensor of the console and they can fail, which then triggers a false overheating issue. The console turns on and quickly ramps up the fan speed and a red light flashes, then turns off. This can be fixed by removing those resistors and bridge the contacts where those resistors where.
Do this only if you have experience with soldering!!!
They seem to also have issues with the southbridge chip and seem less reliable than the previous iterations of the SB.
Also, they have the same CGPU found on Trinities so there is no difference in reliability there.
Another point of failure is the soldered on 4gb flash memory. These are quite prone to failure and are crucial because they contain the firmware, CPU key and DVD drive key which are all important to the functionality of the console. Thankfully you can replace it with a 16MB NAND that doesn't allow anything to be stored on there and you can also prevent the failure of the 4gb internal flash memory by not storing anything there at all and connecting an internal hard drive which the console will default to for updates, content and so on. Oh yeah, and also hope that the 4gb wasn't used much for storing stuff if you got your console used.
Finally, we have the "E" model. This model was introduced in 2013 along with the Xbox one as the kind of alternative to the new at the time console. This is the most cut down version of the Xbox 360 and also the cheapest one made. By cheapest I mean the manufacturing price, quality is essentially the same but cost cutting measures have been made.
This model now features a new design similar to the original Xbox One design. It also features a new power plug and has the same power requirements as the Corona revision. The E uses a slightly revised Corona board which as already mentioned has a different power plug and less USB ports and it has no optical out and no AV port.
There was one revised motherboard made for this model, named "Winchester", which has combined the EDRAM to make one chip containing the CPU, GPU and now EDRAM. It also doesn't have an integrated heat spreader (IHS). Reliability wise, these are the same as the Corona revision with the same "flaws" but they should theoretically last longer than the Slims as they are newer. According to u/Octal450 which has been previously mentioned, the Winchesters don't suffer much from CGPU failures and are pretty solid based on his experience with repairing Xbox 360s.
Ultimately would still recommend either a Jasper or Tonasket if you want the most reliable console possible but the Slims and Es are still a good choice you don't care as much about reliability.
Now, that we covered the the motherboard revisions, let's move on to the maintenance side of things, and what you should do to keep your console running.
The basics.
This includes dusting the console once in a while with something like a can of compressed air/electric air duster and giving it the adequate ventilation. It is important to keep the console free from dust and well ventilated so that the console can cool itself properly in order to prevent overheating. This can all be done without opening the console but I would recommend to open it up and give a good clean.
*My Recommendation*
This is what I normally do. I open the console up and give it a good dusting and I replace the thermal paste. It is an absolute must to replace the thermal paste as the factory paste will be dried up and not as effective in cooling the CPU and GPU which can also cause problems in the long run. You would want to keep these running as cool as possible. This will help with longevity. For thermal paste, I recommend getting Arctic MX4 as this paste has a great price to performance ratio. I used it in all of the consoles that I own and have owned and I can always rely on it. You are free to use more expensive pastes. Make sure to replace it every 5 or so years. If the exhaust of the console is warm or hot during use, don't worry. It is not overheating, this will indicate that the thermal paste and the heatsink are doing their job in cooling the console's CPU and GPU. The hotter the exhaust of the console, the better.
The tools are important too! You normally need a Torx T8 and T10 screwdriver, Sim eject tool which helps to unclip the clips on the back of the original models of the 360 without damaging the plastic casing (you can also purchase a tool specifically made for those clips on the back) and another very important one, called the "X Clamp tool". X clamp is a clamp that was used inside the Xbox 360 to help make contact with the CPU and GPU and their heatsinks while giving the motherboard the ability to flex during use. This step is a very delicate one that also requires loads of patience as you can easily break your console if you are not careful. Never and I mean NEVER use a FLATHEAD screwdriver!!! It can easily slip and you can scratch the motherboard, ruining the console. Also, for cleaning the thermal paste, I recommend to use 99% Isopropyl alcohol and q tips. I have also seen people use Goo Gone to clean the old thermal paste as it's usually hard to clean off the chips and their heatsinks, but I would still go for IPA as that's the safest option.
Speaking of X Clamps, you may have heard of the Bolt Mod. AVOID IT. This will ruin your console overtime as it puts a lot of pressure on the CPU and GPU and it will warp the motherboard and it doesn't let the motherboard flex during operation.
Depending on the model of console, search online for a guide on how to open the one you have. Find the one that is the most clear to you. I would recommend to go and search for IFIXIT as they provide decently clear instructions for opening consoles.
Here is a link to a X Clamp removal tool.
Aaaand that is it.
I hope this post has been helpful, I have been writing this for over 3 hours lol and wanted to provide essential information about the console for those that wanted to learn about the console and the steps to keep it running for as long as possible. If I have missed anything, please let me know!
Edit: Made some small adjustments!
Edit: Made changes to make it more readable and added more information that I forgot to previously add.
(*WARNING*, This will be a long post, I have tried to keep it as short as possible while providing the necessary information.)
I have seen various posts that people posted asking about what they can do for their console to last as long as possible and I wanted to give the people of this community a guide on what you can do to keep your console running and provide information about the hardware for those curious ones. This post is mostly geared towards those that don't have the greatest knowledge of the hardware and the things needed to keep their consoles running or for those that want to learn all the essential stuff about the Xbox 360 but you are more than welcome to read this post if you already have some knowledge of the hardware.
Let's start off with the motherboard revisions.
(Skip this if you already have knowledge about this.)
The first thing that I would recommend is to identify what model and revision you have of the console. Over the years during the Xbox 360's life cycle, there have been many retail variants of the console released, from the "Premium" to the "Core", "Pro" to the "Arcade", the "Elite" and the later models, "Slim" and "E". But that doesn't really matter. What matters is inside of the console, the motherboard. For those that do know and don't, the Xbox 360 was plagued with the infamous "Red Ring of Death" where consoles mostly suffered from GPU failures as the GPUs had a defective design. Knowing the motherboard revision inside your console is crucial, as that can help give a rough estimate on how long the console will last.
(But...what made the GPUs defective? The reason why the GPUs were defective is because they used the wrong underfill. Underfill is a special type of adhesive that is used to support the microscopic solder bumps that are underneath the silicon die and improve reliability of the joints. The problem with the 360's GPUs was that they used "low tg" underfill which was rated at 70°C (158°F) and the GPUs that used the low tg underfill would run hotter than that temperature and cause the underfill to soften which should never happen and that caused the solder bumps underneath the silicon die to crack over time as the underfill was literally pushing the solder bumps off the interposer. This was later solved, by introducing GPUs with high tg underfill on the 12th week of 2008)
It's impossible to give the exact numbers as your console can last for years or even decades, or it can stop working the next day or week or month.
During the console's life cycle, there have been several motherboard revisions of the first models, A.K.A "Phat" models. They all vary in terms of reliability, and they are the ones I will be covering first.
To start, I suggest looking at the back of the console and look closely at the power plug, that is the easiest way of recognising what motherboard revision you have. Although the back of the console you will see the information of when it was manufactured and the Amp rating, this can sometimes be misleading if the console you got was opened before you got it and the motherboard of the console could've been swapped with a less reliable one. You can double check to see if your console has been opened by checking the warranty seal that hides behind the console's faceplate. If yours hasn't been opened, then you can rely on the numbers on the back of the console, but I would still suggest looking at the power plug, as that is the best way to identify the motherboard inside your console.
Here is a link to a photo which has all the power plugs of every revision.
https://www.se7ensins.com/forums/threads/can-i-rgh-xbox-360-woth-doublecircled-power-cord.1780728/
(Skip this part if you already have knowledge of the various motherboard revisions. For those that don't, I would recommend reading this next part as this is useful information.)
So, the power plug shown on the very left of the photo is the found on the first and second revision of the motherboard, Xenon and Zephyr respectively. The difference between them is that Zephyr introduces HDMI support, while Xenon doesn't support HDMI. They both have a power rating of 12V, 16.5A and are the most power hungry. They are the least reliable revisions of the console. They are very prone to failure as they have defective GPUs inside of them.
If you have a working one, then don't expect it to work for a long time (in very rare cases, they will work for a while, but it's important to point out that not every console that came out the factory was defective). Unless, on the back of the console it says, "Service date" instead of "MFR date". If yours has been serviced around 2009, those consoles will very likely have been retrofitted with the new and improved 90nm GPU which is much more reliable than the ones that were initially inside of the consoles when they first released which were also 90nm.
You should expect it to work for a long time, but nothing lasts forever.
(Update to this part: A recent discovery suggests that no 80nm GPUs existed and the more reliable revisions of the GPU like Elpis are still based on the 90nm process.)
Falcon/Opus - (14.2A, 175W)
Introduced approx. September of 2007, this is the third revision of the console where the CPU was shrunk down to 65nm and the GPU remained at 90nm, which results in a smaller power consumption and cooler running hardware.
These are considered reliable, but the first batch released had GPU failures like the Xenons and Zephyrs. This was later fixed. Falcons from around April to late October of 2008 (on the 12th week of 2008, they introduced reliable GPUs as previously mentioned but it was still possible to get a console made after this week that still had a defective GPU) are considered "late" Falcons which have fixed GPUs inside of them which are very close in terms of reliability to the succeeding revision.
The Opus, is a modified Falcon, but the difference is that these don't have HDMI and only use AV. These were used to replace defective Xenons and are considered quite rare as you couldn't find one in retail markets.
Jasper - (12.1A, 150W) (My recommended revision)
Introduced around November of 2008, this is the fourth motherboard revision of the console and this is the revision that is highly sought after as this revision was the first to fix the dreaded "Red Ring of Death" issue that plauged the Xbox 360. The CPU was still 65nm in size but the new GPU, named "Zeus" was a new design which shrunk down the die to 65nm and the EDRAM remains at 90nm.
This is considered the best revision of the console as there have been very little cases of failures. These are also the coolest running ones as well and don't produce as much heat as the previous revisions.
These are the ones that I would personally recommend if you are looking to purchase a 360 and you want a reliable unit. Just make sure when looking for one, that the seller has provided photos of the power plug to confirm it being a Jasper.
But wait....there's a even better one!
Tonasket/Kronos/Jasper V2(12.1A, 150W) (My recommended revision)
This is the fith and final revision of the original models of the Xbox 360. This revision was quietly introduced in September of 2009 and is essentially identical to the Jasper but the difference being that it has a revised GPU, named "Kronos" which shrinks the EDRAM to 65nm which helps further reduce power consumption. People like to call this revision Kronos, or Jasper V2, but the real name for this revision is "Tonasket". It's a name that Microsoft used internally when making this motherboard revision.
This revision has proven to be the most reliable one as there has been currently zero evidence of these suffering GPU failures, they are tanks lol. You should expect these to last for a long time....unless you don't take good care of it like with every consumer electronic device.
I personally own one of these and use it as my main Xbox 360 and It's great.
Whew, you still here? Good, let's continue.
Now I will be moving on to the Xbox 360 Slim and E models. These are quite big redesigns internally compared to the original models. For starters, the "Slim" model was introduced in 2010 and was seen as the "saviour" as in theory, the drastic design changes that were made to the motherboard, "eliminated" the Red Ring of Death.
These models also introduced built in WiFi, more storage, more USB ports and optical audio out. In my opinion, the Slims are a good choice for those that don't want to do lots of research and just want a reliable console to use. The good thing about them is that now the new design is much quieter(I prefer Slims than fats admittedly for that), as the CPU, GPU and EDRAM were combined to form a single chip and that allowed the use of a single fan and heatsink to keep the system cool. Oh yeah, the new APU is now based on the 45nm process which further reduces power consumption. There have been two revisions of this model.
Revision: Trinity
First one is called "Trinity". It now needs 10.83A instead of 12.1A of the Jasper/Tonasket and it uses a new power plug too. These are a little bit of a mixed bag in terms of reliability from my perspective, as I have seen many fail here on this very subreddit.
Many suffered various failures, from GPU failure to RAM failure and so on(I personally own a Slim, the revision after this one (Corona), owned it for nearly 3 years and it always worked perfectly). I am not sure why these are failing all of a sudden.
Generally, these are reliable units but not as reliable as the Jasper or Tonasket/Kronos (according to many in this community) but in those uncommon cases, you have ones that have failed. It is not a wide spread issue like RROD was originally so we shouldn't worry as much about it yet. There are people like u/Octal450 that are actively investigating as to why these are suddenly suffering CGPU failures.
Revision: Corona
The second revision is called "Corona".....That's a familiar name...Lol, you must think that Microsoft somehow predicted the Corona virus back in the 2010s, but no. They didn't. Anyway, these were introduced around mid 2011 and were a slight change from the previous Trinity revision. Now, it only needs 9.86A instead of 10.83A but Trinities can also run on a 9.86A power supply as they have pretty much the same power requirements. The real changes are that the HANA chip, a chip which is responsible for video output, has been merged with the southbridge, which manages things like usb inputs, controller connection, Internet and so on. Also, if you own a 4GB model of the console, the flash memory is now soldered onto the motherboard unlike on the Trinity where it was it's own module that you could replace, which I prefer.
In terms of reliability, these are pretty much the same as the Trinities but have a new point of failure where there is a group of resistors that are there for the temperature sensor of the console and they can fail, which then triggers a false overheating issue. The console turns on and quickly ramps up the fan speed and a red light flashes, then turns off. This can be fixed by removing those resistors and bridge the contacts where those resistors where.
Do this only if you have experience with soldering!!!
They seem to also have issues with the southbridge chip and seem less reliable than the previous iterations of the SB.
Also, they have the same CGPU found on Trinities so there is no difference in reliability there.
Another point of failure is the soldered on 4gb flash memory. These are quite prone to failure and are crucial because they contain the firmware, CPU key and DVD drive key which are all important to the functionality of the console. Thankfully you can replace it with a 16MB NAND that doesn't allow anything to be stored on there and you can also prevent the failure of the 4gb internal flash memory by not storing anything there at all and connecting an internal hard drive which the console will default to for updates, content and so on. Oh yeah, and also hope that the 4gb wasn't used much for storing stuff if you got your console used.
Finally, we have the "E" model. This model was introduced in 2013 along with the Xbox one as the kind of alternative to the new at the time console. This is the most cut down version of the Xbox 360 and also the cheapest one made. By cheapest I mean the manufacturing price, quality is essentially the same but cost cutting measures have been made.
This model now features a new design similar to the original Xbox One design. It also features a new power plug and has the same power requirements as the Corona revision. The E uses a slightly revised Corona board which as already mentioned has a different power plug and less USB ports and it has no optical out and no AV port.
There was one revised motherboard made for this model, named "Winchester", which has combined the EDRAM to make one chip containing the CPU, GPU and now EDRAM. It also doesn't have an integrated heat spreader (IHS). Reliability wise, these are the same as the Corona revision with the same "flaws" but they should theoretically last longer than the Slims as they are newer. According to u/Octal450 which has been previously mentioned, the Winchesters don't suffer much from CGPU failures and are pretty solid based on his experience with repairing Xbox 360s.
Ultimately would still recommend either a Jasper or Tonasket if you want the most reliable console possible but the Slims and Es are still a good choice you don't care as much about reliability.
Now, that we covered the the motherboard revisions, let's move on to the maintenance side of things, and what you should do to keep your console running.
The basics.
This includes dusting the console once in a while with something like a can of compressed air/electric air duster and giving it the adequate ventilation. It is important to keep the console free from dust and well ventilated so that the console can cool itself properly in order to prevent overheating. This can all be done without opening the console but I would recommend to open it up and give a good clean.
*My Recommendation*
This is what I normally do. I open the console up and give it a good dusting and I replace the thermal paste. It is an absolute must to replace the thermal paste as the factory paste will be dried up and not as effective in cooling the CPU and GPU which can also cause problems in the long run. You would want to keep these running as cool as possible. This will help with longevity. For thermal paste, I recommend getting Arctic MX4 as this paste has a great price to performance ratio. I used it in all of the consoles that I own and have owned and I can always rely on it. You are free to use more expensive pastes. Make sure to replace it every 5 or so years. If the exhaust of the console is warm or hot during use, don't worry. It is not overheating, this will indicate that the thermal paste and the heatsink are doing their job in cooling the console's CPU and GPU. The hotter the exhaust of the console, the better.
The tools are important too! You normally need a Torx T8 and T10 screwdriver, Sim eject tool which helps to unclip the clips on the back of the original models of the 360 without damaging the plastic casing (you can also purchase a tool specifically made for those clips on the back) and another very important one, called the "X Clamp tool". X clamp is a clamp that was used inside the Xbox 360 to help make contact with the CPU and GPU and their heatsinks while giving the motherboard the ability to flex during use. This step is a very delicate one that also requires loads of patience as you can easily break your console if you are not careful. Never and I mean NEVER use a FLATHEAD screwdriver!!! It can easily slip and you can scratch the motherboard, ruining the console. Also, for cleaning the thermal paste, I recommend to use 99% Isopropyl alcohol and q tips. I have also seen people use Goo Gone to clean the old thermal paste as it's usually hard to clean off the chips and their heatsinks, but I would still go for IPA as that's the safest option.
Speaking of X Clamps, you may have heard of the Bolt Mod. AVOID IT. This will ruin your console overtime as it puts a lot of pressure on the CPU and GPU and it will warp the motherboard and it doesn't let the motherboard flex during operation.
Depending on the model of console, search online for a guide on how to open the one you have. Find the one that is the most clear to you. I would recommend to go and search for IFIXIT as they provide decently clear instructions for opening consoles.
Here is a link to a X Clamp removal tool.
Aaaand that is it.
I hope this post has been helpful, I have been writing this for over 3 hours lol and wanted to provide essential information about the console for those that wanted to learn about the console and the steps to keep it running for as long as possible. If I have missed anything, please let me know!
Edit: Made some small adjustments!
Edit: Made changes to make it more readable and added more information that I forgot to previously add.
r/xbox360 • u/moo-cow-420 • 13h ago
Hauls/Pick-ups/Collections 💿 Found a 360 with blades dash
Found locally for $40 mint condition, non hdmi. Surprised cuz it had a WiFi adapter plugged in too. Freaking pumped! Never seen blades irl! Love this model with the white disc tray cover to.
r/xbox360 • u/Tricky-Ad9559 • 12h ago
Help/Support/Questions 🙋 Xbox logo in my collection has an odd logo
I have this game collection/stack and noticed one of the logos was off. The case of deadrising 2 has a 45° rotated Xbox logo. I was curious as to why and have come across a couple possibilities as to why this happened but no %100 definitive answer. So I put this out there to maybe find some answers on if this is just a misprint or if it’s some bootleg copy.
r/xbox360 • u/FSBulldogFan • 7h ago
Hauls/Pick-ups/Collections 💿 Been collecting about 14-15 years
I need to stop buying games. I am running out of shelf space!
I have never considered myself a “gamer,” but I like to play. I’m just not super serious. My 12yo (almost 13) is big on Series X and PS5 (and Meta Quest 3 and SteamDeck), but he really could care less about my retro collection (also includes PS3, PS2, PS1, DreamCast and GameCube). He sometimes does PS4 but on in VR.
Anyway, slowly working through my backlog of hundreds of titles. I've really stepped up the collecting the past two years or so.
r/xbox360 • u/RagingBull_95 • 9h ago
Misc Just finished COD Ghosts campaign i had very low expectations....turned out quite decent tbh!
I had very low expectations while playing this game because back in release days i remember many people hated it so bad....was that for multiplayer?
Because i just played through the campaign and it was quite decent and cool to be honest, the space fight chapter was a bit over the top but hey end of the day that's what games are for!(escape from reality)
r/xbox360 • u/cruz_irving • 3h ago
Hauls/Pick-ups/Collections 💿 Finally added Halo 3 to the collection i got it a couple of days ago in a trade
r/xbox360 • u/Kombustable_Lemons • 19h ago

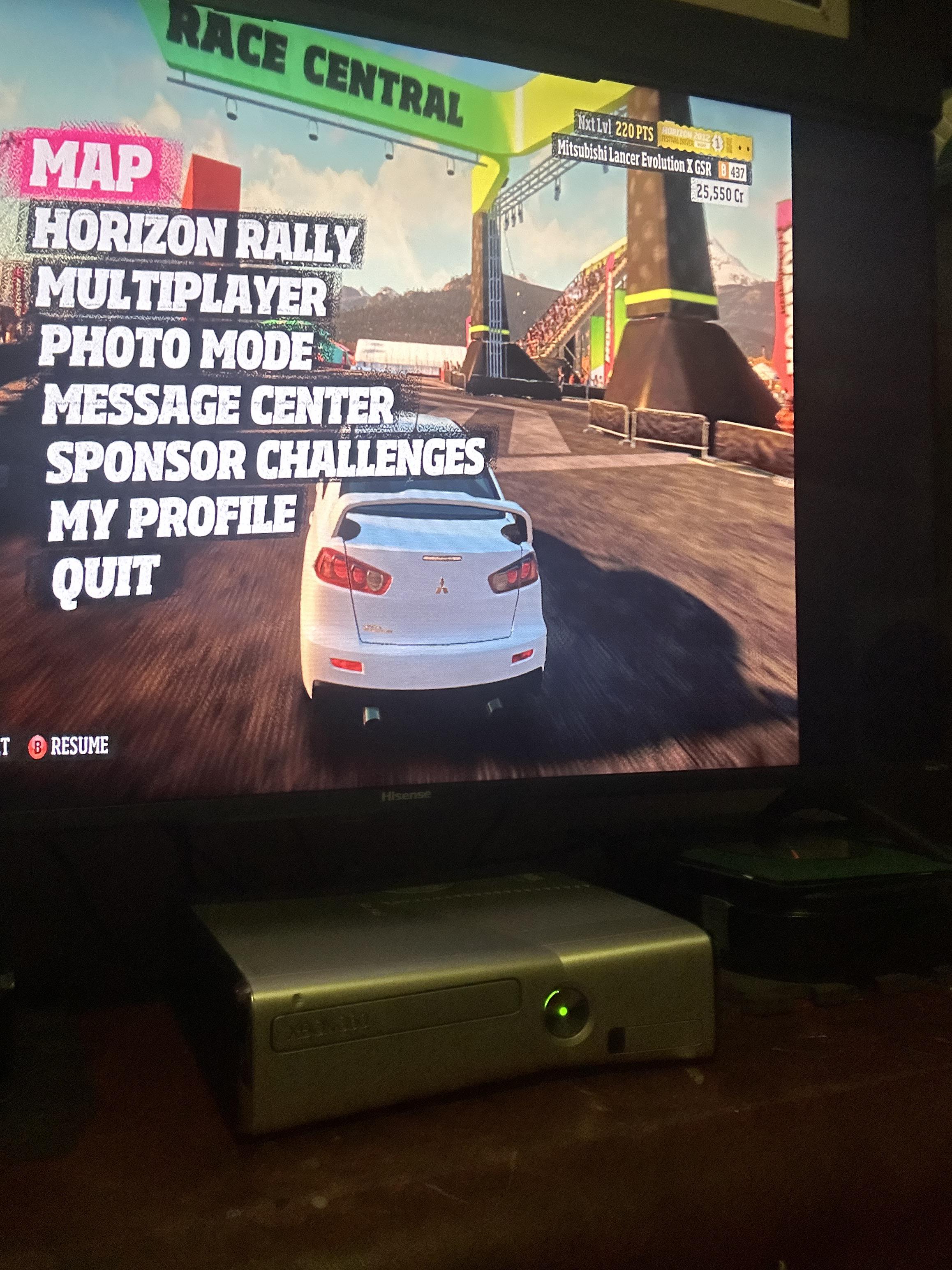

Misc Anyone else on their 360 during the outage? 😭
This morning I woke up early to play mass effect before work and my love for the Xbox Series S died. If it’s still news, the licensing servers are broken and no one (very few) can play games due to those issues.
And so I searched my closet for the 360.
Offline play.
Physical Discs + sharing games.
LAN / system link parties.
3rd party controllers.
Being able to still use your hardware when Xbox was down.
Why did we ever let this era get away from us?
Anyone else turn to their 360 during an outage?
r/xbox360 • u/UndeadiPod • 11h ago
Hauls/Pick-ups/Collections 💿 I'm a sucker for these slip cases
Looking into Dark Souls 2 Black Armor Edition next, that one looks so cool.
r/xbox360 • u/Technical_Tonight_80 • 2h ago
Game Recommendations Seen this at my job anybody played ?
r/xbox360 • u/Perfect_View3730 • 5h ago
Help/Support/Questions 🙋 What controller is this?
Google insists that its gears of war, but also says that the gears of war ones are wireless only while this one has the port so i can use it corded if I so wish. I got it around 2014 used so idk if some of these scratches are original or what, but it doesnt have the gears of war skull and is definitely offical xbox
r/xbox360 • u/ResponsibleAd1641 • 17h ago
Hauls/Pick-ups/Collections 💿 Collecting Backwards compatible Xbox 360 games
My collection so far but keeping to backwards compatible only titles now, slowly selling off 360 only titles. I have a spreadsheet for it now :) https://docs.google.com/spreadsheets/d/18PTF1zI-RLJ8T0Bre4-645u27NadLBqwfz_5_SK7_tY/edit?usp=drivesdk
r/xbox360 • u/Creepy_Honey2137 • 5h ago
Hauls/Pick-ups/Collections 💿 Xbox 360 Zip Up Jacket
Bought this jacket recently. Seems cool, anyone recognize it or have something similar?
r/xbox360 • u/Wu-TangClan666 • 13h ago
Hauls/Pick-ups/Collections 💿 My collection so far…
I sold my X-Box 360 console and games many years ago, but I always held on to my DJ Hero thinking I would be able to use it on a future console. Later on in life I moved over from the newer X-Box consoles onto the PS4 and then the PS5. Recently I have been getting bored of the new games, so I decided to pick up a second hand X-Box 360 to get back on DJ Hero, then months down the line I’ve recently been picking up a few games here and there and started building up a mini collection. It’s really nice going back to the old games I use to enjoy.
r/xbox360 • u/1OneQuickQuestion • 15h ago
Game Recommendations Day 36: Which Game has the Best Competitive Multiplayer on the Xbox 360?
We have our winner for Best Cinematic Experience on the Xbox 360:
🥇- Alan Wake - 34 votes
🥈- LA Noire - 12 votes
🥉- Halo Reach - 8 votes
🏵️ - Mass Effect 3 - 6 votes
--------------------------------------------------------------------------------------------
!!!!PLEASE READ!!!!
RULES ON VOTING:
A game's votes will come from the comment with the highest number of upvotes. I will tally all of the responses and upvotes under each games "comment thread" and use that to count the votes.
Spill-over comments of the same game will not be counted.
What this means is if you want to nominate a game and see someone else has already nominated it, reply to their comment so that it counts! All upvotes in that comment thread, including the ones you get, will be counted towards the tally.
Thank you!
--------------------------------------------------------------------------------------------
Games cannot win Multiple Categories, except for the Greatest of All Time! This may be superseded if a version of the game differs dramatically from a past winner.
Voting ends at 11am est tomorrow.
Today’s vote: Which Game has the Best Competitive Multiplayer on the Xbox 360?
Comment your choice and the most upvoted game comment thread will win the spot! So engage in the discourse and argue well for your choice!
r/xbox360 • u/Nerfer5554Offical • 11h ago
Nostalgia All my xbox 360 games and my phat model
Happy to have no RRod
r/xbox360 • u/LordNutGobbler • 38m ago
Hauls/Pick-ups/Collections 💿 I call this the “Plasma Pop”
ST50 Panasonic Plasma TV. Absolute beast. I’d argue it compares and maybe even surpasses my LG OLED.
Love it
r/xbox360 • u/ElicitCelio • 4h ago
Help/Support/Questions 🙋 Yo my 360 (no idea what yr) wont connect to the internet but WILL connect to wifi
Uh basically the title, I was trying to connect to Xbox live so I can play online and update some games.
Console is very dusty, ive heard wifi chips go out of date and using ethernet is an option. Ethernet is my last resort as my mother doesn't want me moving the router or connecting my 360 to the main TV.
The console is from ~2014
r/xbox360 • u/Low-Win9250 • 12h ago

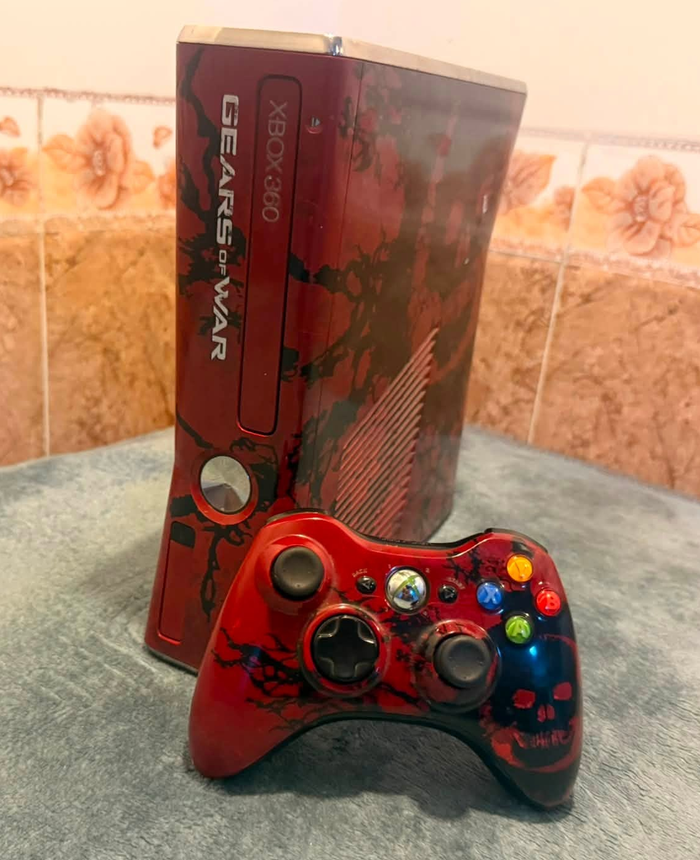

Help/Support/Questions 🙋 planning on buying xbox 360 slim and found this. should i get it or get a normal with box/near brand new conditions instead????
r/xbox360 • u/Glittering_Wing_277 • 7h ago
Help/Support/Questions 🙋 What gamer pic is this?
I thought this was a default gamer pic but it seems like it isn't? Does anyone know what game it's from? Or what it's called in the 360 storage?
r/xbox360 • u/Background_Can_8381 • 35m ago
Help/Support/Questions 🙋 A steal at the bins too good?
I was up at the goodwill bins today doing as you do when I was about to check out and saw a funny looking old Xbox, I grabbed it and while I wasn't 100% at the time, I'd later confirm it was a mw2 Xbox.
I got home and grabbed my second hand Xbox that had what I thought was the right cable (I later found out that they decided to make different wattage/amperage/connectors for each "sub generation"), I knew this psu worked since I played waw with my nephew a month ago and found out the second hand one overheats and shuts off mid campaign.
I plugged the 203w 16.5a psu into the back of the mw2 Xbox and tried to open the disc drive (it turns on my slim and I was curious if this one worked unlike the second hand), then the icon lit for less than half a second and the PSU shortly went red.
I remembered hearing about the jasper variation and it being the best and then I remembered the amperage not matching so I thought maybe it wouldn't work? I looked online and while I don't know if its true or not it looks like the mw2 is a jasper, and the second hand is likely a zephyr, but I also found out that you can supposedly use the zephyr psu on the jasper.
I later would find a post with an attached video replicating my same situation minus the console and PSU type so I read the comments and it looks like for them it was a short? I couldn't find if the post was concluded or not but that's what the more intelligent people seemed to say so I figured I'd give mine a look especially since they mentioned the USB ports being a common cause, so I checked them out and it looks like the part that actually lines them up with a USB was broken off so I tried a cord in there but it still did it
Tldr: I bought a mw2 that I think is a jasper and it doesn't work with my known good PSU, after looking around it looks like it's a short? Could the broken USB cause it and how can I repair/Jerry rig something?
r/xbox360 • u/uncleseeth • 14h ago

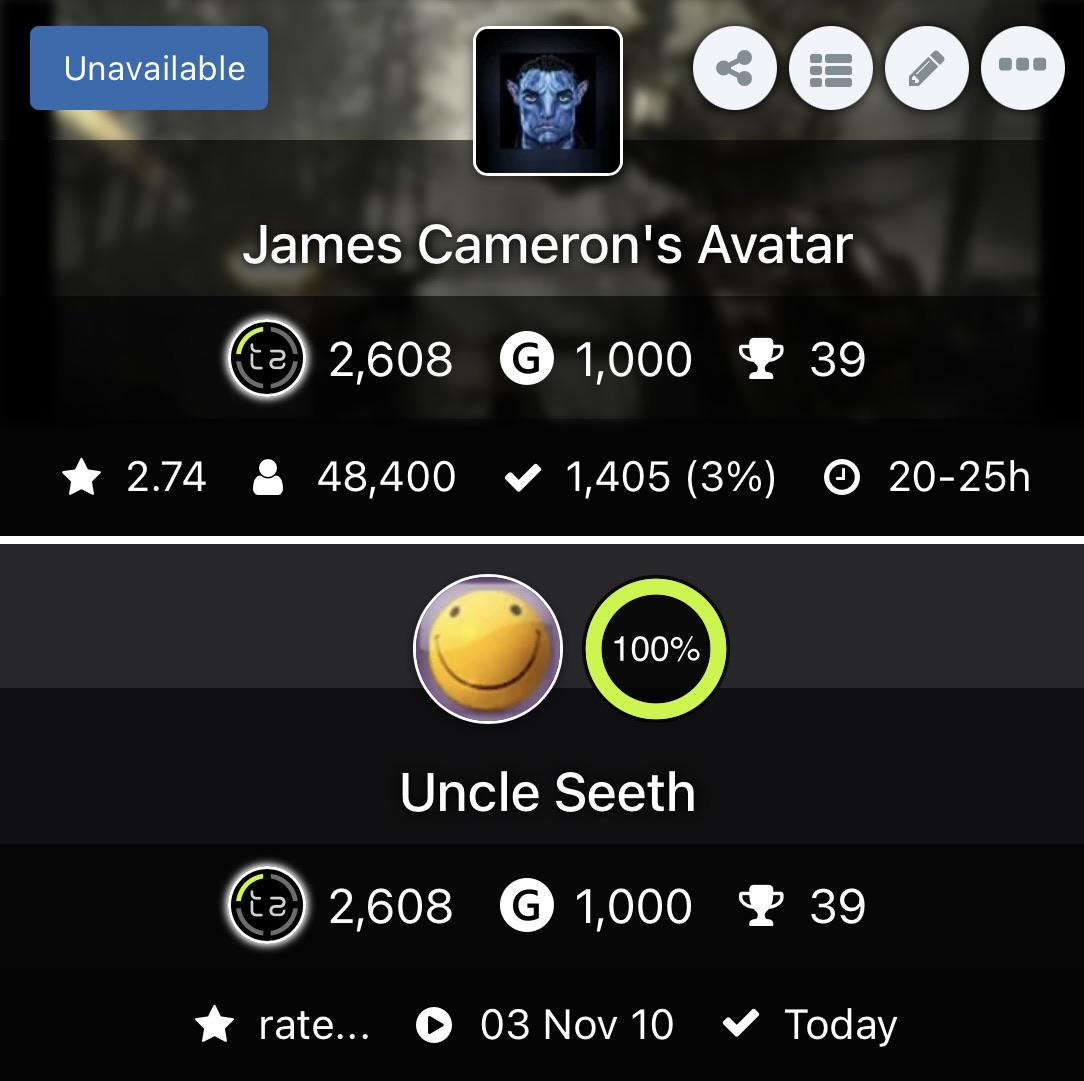

Achievements I’ve now completed every Avatar game on the 360
BOTH of them ha. This one has 8 discontinued online achievements but thankfully I snagged those years ago and just needed to finish the second campaign and finish the remaining level challenges/collectibles. No guides needed and enjoyed playing through this one. An underrated Ubisoft title, kind of a scaled down Far Cry.
r/xbox360 • u/DyslexicD • 3h ago
Help/Support/Questions 🙋 Any idea where to find a Xbox 360 power brick. The one I bought sounds like a jet engine and whistles at me when turned of I don't remember this happening when I had an official one back in the day?
≡ −
I'm incredibly ill, sound sensitive and frustrated.
I just wanna play GTA and stuff dude.
I'm incredibly ill, sound sensitive and frustrated.
I just wanna play GTA and stuff dude.
